Merit PAK™ Pedal Access Kits

Pedal access is a promising alternative access site for recanalization procedures in patients with Peripheral Artery Disease (PAD) and Critical Limb Ischemia (CLI)1. Merit Medical has designed efficient kits to help physicians achieve Pedal Access: Introducing Merit PAK Pedal Access Kits.

Accurate Access

• Echo-enhanced needles for visibility under fluoroscopy and ultrasound

• Clear hub needles for visibility of flash

Easy Insertion

• Seamless transitions from dilator to introducer for smooth insertions

• Larger 4F (ID) PreludeEASE® hydrophilic sheath for insertion of target treatment devices

• Stiffened dilator configuration available for tortuous anatomy

Merit PAK™

Merit PAK™ - a suite of pedal access kits including everything you need to access the arteries
below the knees. The micro-needles, introducers, and dilators provide quick and easy access for limb
salvage procedures.

Merit PAK™ Pedal Access Kits

ORDERING INFORMATION
Catalog Number	Type	Introducer OD/ID	Sheath Working Length	Needle Gauge	Needle Length	Needle Hub& Type	Guide Wire Diameter	Guide Wire Length	Hemostasis Valve
PAKM4NPD4	Mini	4/3F	10cm	21	4cm	Clear/Echo	0.018"	40cm	Yes
PAKM4NPD7	Mini	4/3F	10cm	21	7cm	Clear/Echo	0.018"	40cm	Yes
PAKM5NPD4	Mini	5/3F	10cm	21	4cm	Clear/Echo	0.018"	40cm	Yes
PAKM5NPD7	Mini	5/3F	10cm	21	7cm	Clear/Echo	0.018"	40cm	Yes
PAKS4NPD4	Stiffened	4/3F	10cm	21	4cm	Clear/Echo	0.018"	440cm	Yes
PAKS4NPD7	Stiffened	4/3F	10cm	21	7cm	Clear/Echo	0.018"	40cm	Yes
PAKS5NPD4	Stiffened	5/3F	10cm	21	4cm	Clear/Echo	0.018"	40cm	Yes
PAKS5NPD7	Stiffened	5/3F	10cm	21	7cm	Clear/Echo	0.018"	40cm	Yes
PAKPHR47NPD4	Hydrophilic	6/4F	7cm	21	4cm	Clear/Echo	0.018"	40cm	Yes
PAKPHR47NPD7	Hydrophilic	6/4F	7cm	21	7cm	Clear/Echo	0.018"	40cm	Yes

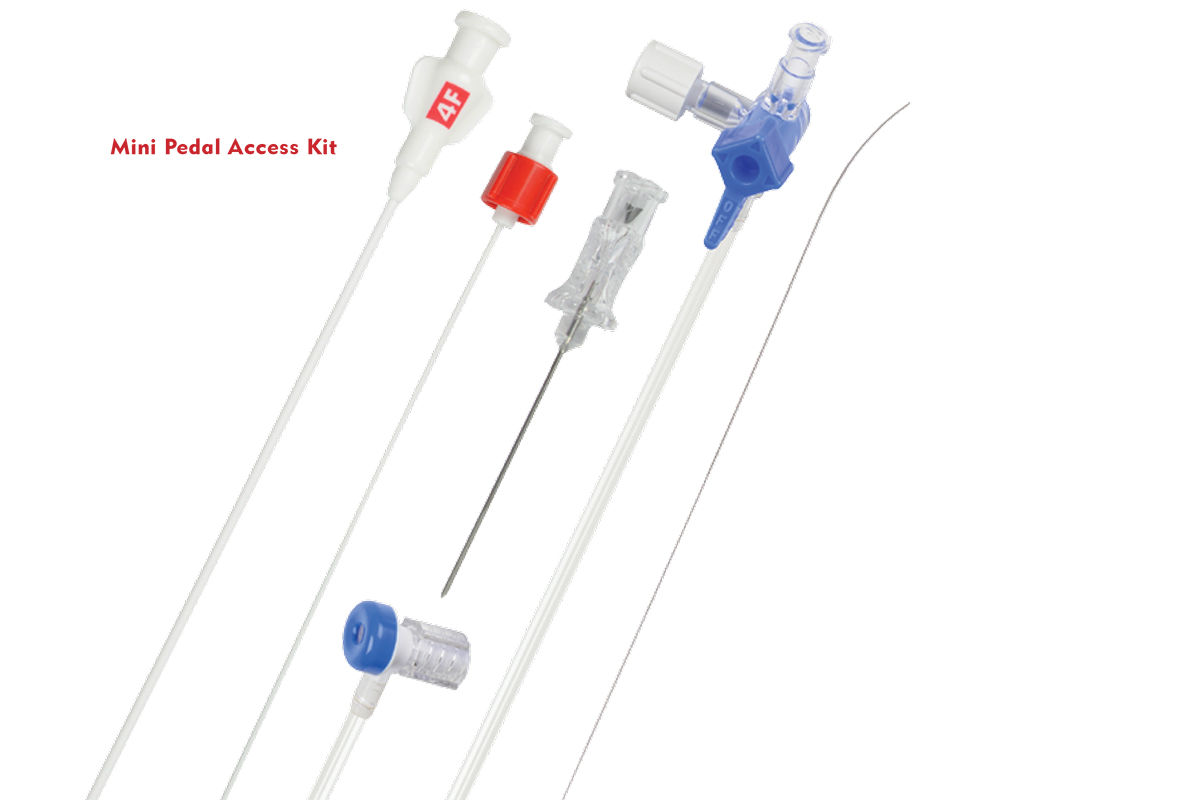

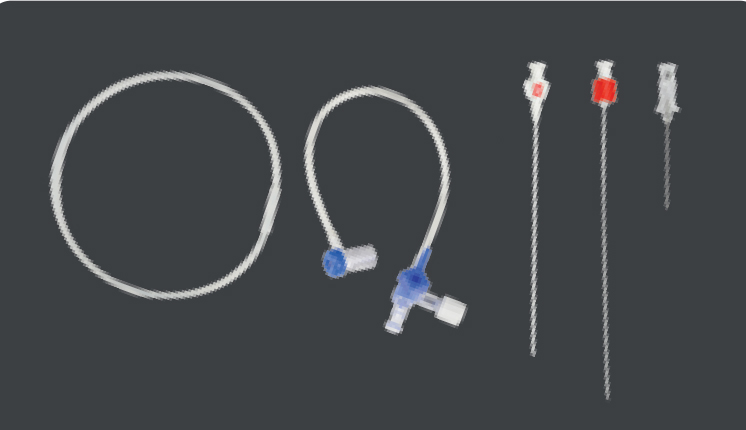

MINI PEDAL ACCESS KIT

• Echo-enhanced, clear hub needle
• Introducer & dilator
• Nitinol/Palladium (NPD) Guide wire
• Hemostasis Valve Adapter

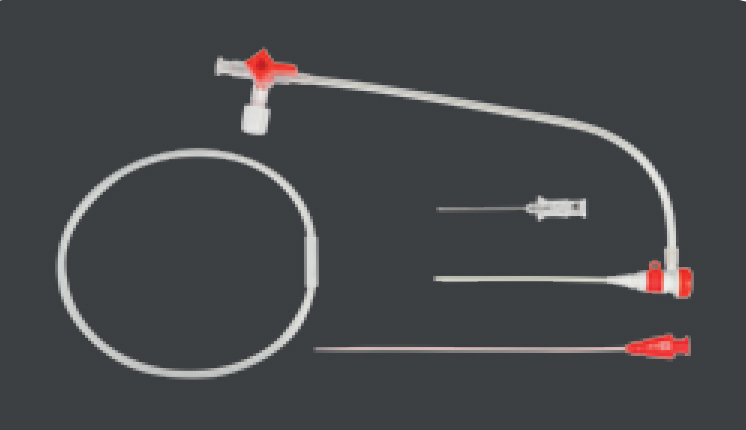

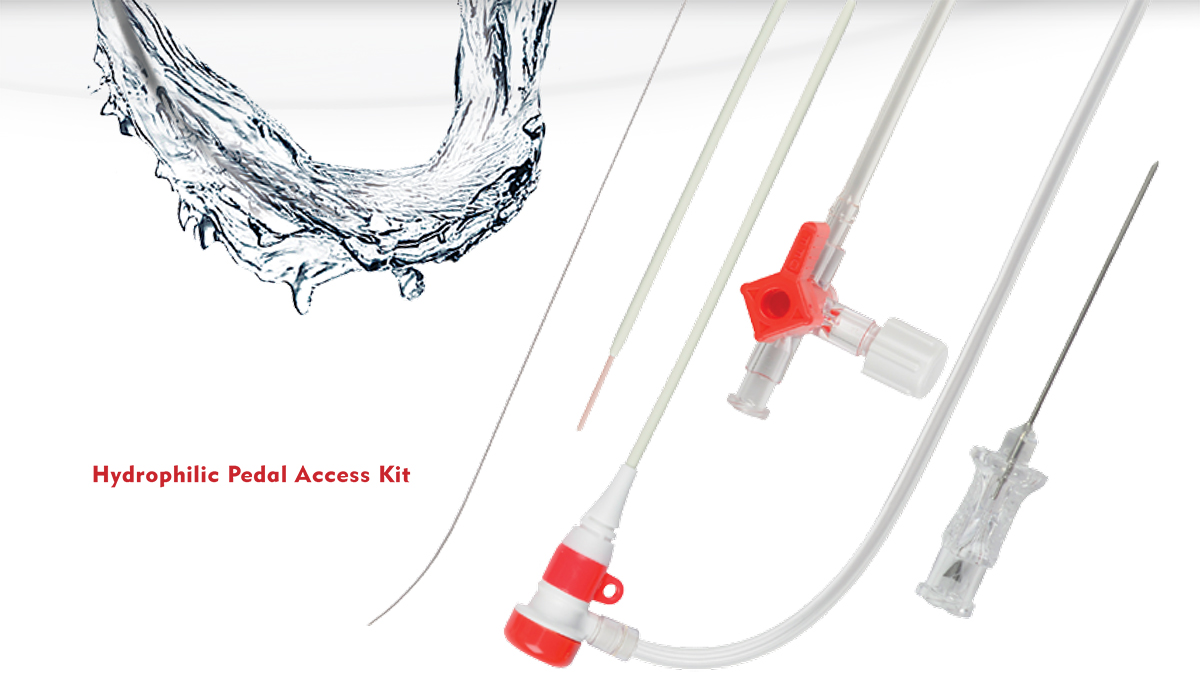

HYDROPHILIC PEDAL ACCESS KIT

• Echo-enhanced, clear hub needle
• Hydrophilic sheath introducer with hemostasis valve and a side arm
• Nitinol/Palladium (NPD) Guide wire

STIFFENED PEDAL ACCESS KIT

• Echo-enhanced, clear hub needle
• Introducer & stiffened dilator
• Nitinol/Palladium (NPD) Guide wire
• Hemostasis Valve Adapter

1 El-Sayed H.F. Retrograde Pedal/Tibial Artery Access for Treatment of Infragenicular Arterial Occlusive Disease.
Methodist Debakey Cardiovasc J. 2013 Apr-Jun; 9(2): 73–78.
2 Stockel D. Nitinol – Material with Unusual Properties. Endovascular Update, Issue 1. 1998
For a complete inventory please visit our website or talk to your Merit Medical Professional.
