Classic Sheath

Splittable Hemostatic Introducer System.

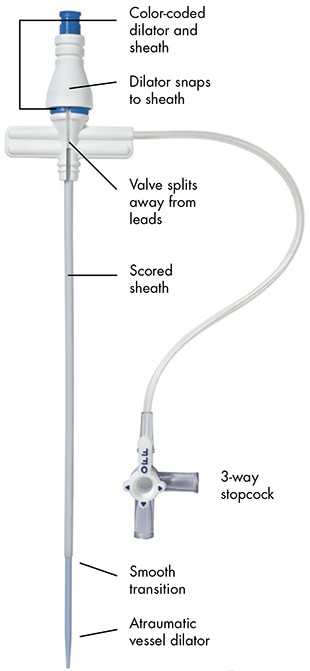

PRODUCT FEATURES

Robust valve design has been used for over 17 years

Has been shown to reduce back bleeding and risk of air embolism1

Color coded by French size for easy identification

Smooth dilator transition designed to reduce vein entry force

Snap-fit dilator secures assembly for introduction

Monolithic and atraumatic guide wire

Scored sheath for consistent peel away performance

1 Lee, H. Usefulness of a peelaway sheath introducer with a splittable hemostatic valve for placement of permanent pacemaker lead. Catheterization and Cardiovascular Diagnosis. 1997;40:326–327.

CLASSICSHEATH Standard

Part Number	Sheath ID	French Size	Cap Color	Length

CLS-1006	0.083 in	6F	Green	13 cm
CLS-1007	0.092 in	7F	Orange	13 cm
CLS-1008	0.105 in	8F	Blue	13 cm
CLS-1008.5	0.112 in	8.5F	Light Blue	13 cm
CLS-1009	0.118 in	9F	Black	13 cm
CLS-1009.5	0.125 in	9.5F	White	13 cm
CLS-1010	0.131 in	10F	White	13 cm
CLS-1010.5	0.138 in	10.5F	White	13 cm
CLS-1011	0.144 in	11F	White	13 cm
CLS-1012	0.158 in	12F	White	13 cm
CLS-1012.5	0.164 in	12.5F	White	13 cm

CLASSICSHEATH Long

Part Number	Sheath ID	French Size	Cap Color	Length

CLS-2507	0.092 in	7F	Orange	25 cm
CLS-2508	0.105 in	8F	Blue	25 cm
CLS-2509	0.118 in	9F	Black	25 cm
CLS-2510	0.131 in	10F	White	25 cm
CLS-2510.5	0.138 in	10.5F	White	25 cm
CLS-2511	0.144 in	11F	White	25 cm
