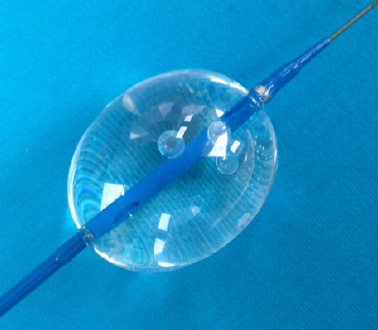

AltoSa-SFT
Balloon Dilatation Catheter.
AndraTec
Ultimate Tacking For Large Vessels
High Dilatation Range For Optimal Performance
Low Profile For Best Deployment And Retrievability
Very Fast Inflation and Deflation Times
- The AltoSa-‐SFT Balloon รs especially designed for large lumen dilatation and tacking of endoprosthesis.
- The short deflation time makes the AltoSa-‐SFT safe and easy to use.
- HD (PU) Material makes the AltoSa‐SFT Tacking balloon highly puncture resistant and reliable for multiple dilatations.
- Increased visibility leading to more accurate positioning.
TECHNICAL INFORMATION
|
Balloon Material:
|
HD PU Material |
|
Balloon Compliance:
|
Compliant |
|
Shaft Diameter:
|
10.5 F |
|
Marker Distance & Balloon Length:
|
30mm & max 40mm |
|
Recommended max Diameter:
|
46 mm at 70ml |
|
Rated Burst:
|
130 ml |
|
Shaft Length:
|
100 cm |
|
Recommended Guide Wire:
|
0.035" (0.89 mm) |
|
Recommended Sheath Introducer:
|
11F |
*With this Balloon AndraTec recommends an Extra stiff guide wire such as the Lokum Lunderquist.
ALTOSA-SFT ORDER CODES:
|
Balloon Length Diameter / CSI / F
|
30mm 100cm shaft |
|
46 mm / 11F
|
AL-46-100 |
